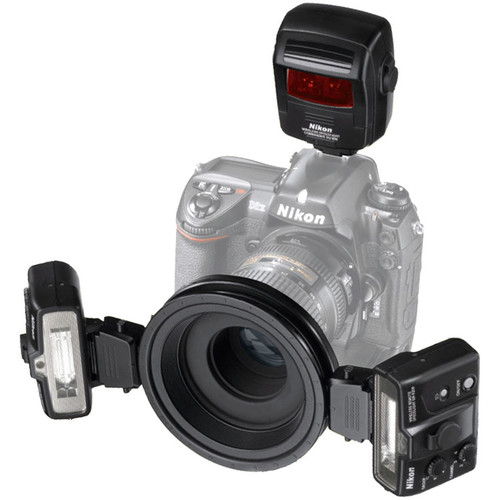

The R1C1 Close-up Speedlight Commander Kit consists of a Wireless Speedlight Commander SU-800, two Wireless Remote Speedlight SB-R200s, and an Attachment Ring SX-1, which is used to attach the SB-R200 to the front of the lens.
Nikon R1C1 Wireless Close-Up Speedlight System (a.k.a. Macro Kit A) is a macro flash solution for i-TTL capable cameras that do not feature a built-in flash (e.g. D2X, D2H/D2Hs, F6). The kit is fully compatible with the Nikon Creative Lighting System and Advanced Wireless Lighting system when used with compatible cameras and/or flashes.
The kit’s main components consist of the SX-1 Attachment Ring that attaches to the lens filter treads via an adapter ring (included), two SB-R200 wireless macro flash heads, and the SU-800 Commander Unit. The SX1 accommodates up to eight SB-R200 Speedlights off-camera and up to four on-camera.
This solution enables excellent close-up lighting control with exceptional flexibility and innovative options. When using the SU-800 with cameras that are not compatible with i-TTL flash control, only close-up flash operation is possible using the optional SC-30 TTL Cord.
- Built-in target light and AF Illuminator allow for proper position of Speedlight on the subject as well as autofocus operation in low light situations.
- Accurate i-TTL flash control achieved through flash exposure monitoring control.
- Can be set to one of three Speedlight Groups (A,B, and C).
- Offers four independent channels for competitive shooting environments.
- Auto FP High-Speed Sync; use with fast shutter speeds achieves effective blurring of out-of-focus background elements.
- FV lock holds flash value, enabling recomposition before shooting.
- Flash head tilts down (toward the optical axis) to 60° with click stops at every 15°, or up to 45° (in the opposite direction) with click stops at every 15°.
