Specifications
|

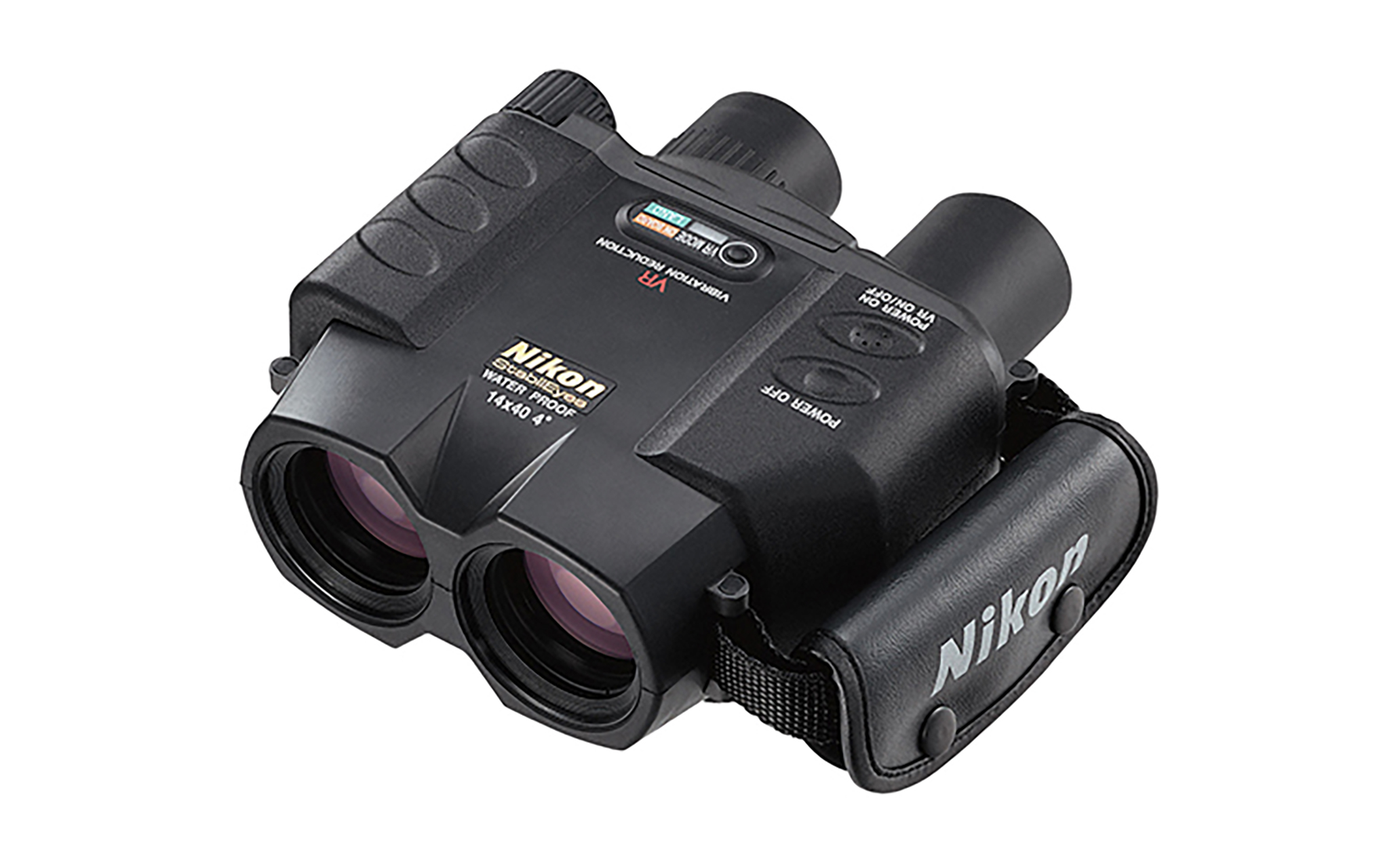

StabilEyes 14×40 |
|
|
Magnification (x) |
14 |
|
Vibration reduction system |
Optical compensation by erecting prisms with gimballed frame |
|
Vibration compensation range |
±5º |
|
Objective diameter (mm) |
40 |
|
Eye relief (mm) |
13 |
|
Diopter adjustment |
±2 dpt. |
|
Field of view (real) (º ) |
4 |
|
Field of view (apparent) (º ) |
52.1 |
|
Field of view at 1,000m (m) |
70 |
|
Exit pupil (mm) |
2.9 |
|
Relative brightness |
8.4 |
|
Interpupillary distance adjustment (mm) |
60-70 |
|
Close focusing distance (m) |
5 |
|
Waterproofing |
Fully protected |
|
Dimensions (L x W x D) (mm) |
186x148x88 |
|
Weight (without batteries) (g) |
1,340 |
|
Operating temperature range |
-10ºC to +50ºC |
|
Battery |
DC 6V (four AA-type DC 3V alkaline batteries) |
|
Battery life |
Approx. 6 hours (continuous operation with AA-type alkaline batteries at normal temperature [20ºC]) |
|
Remaining battery power display |
LED blinks when remaining power becomes weak |
|
Standards compliance |
Japan VCCI class B |
