Canon 77D Specs
| Lens Mount | Canon EF-S |
| Sensor Resolution | Actual: 25.8 Megapixel Effective: 24.2 Megapixel |
| Image Stabilization | Digital, 5-Axis (Video Only) |
Exposure Control
| Shutter Speed | 1/4000 to 30 Seconds |
| Metering Method | Center-Weighted Average, Evaluative, Partial, Spot |
| Exposure Modes | Aperture Priority, Manual, Program, Shutter Priority |
| Exposure Compensation | -5 to +5 EV (1/3, 1/2 EV Steps) |
| Metering Range | 1 to 20 EV |
| Interval Recording | Yes |
| Self-Timer | 2/10-Second Delay |
| Aspect Ratio | 1:1, 3:2, 4:3, 16:9 |
| Image File Format | JPEG, Raw |
| Bit Depth | 14-Bit |
Interface
| Media/Memory Card Slot | Single Slot: SD/SDHC/SDXC (UHS-I) |
| Resolution | 1,040,000 Dot |

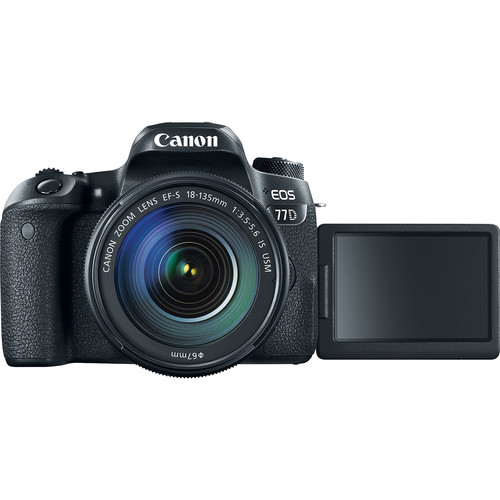

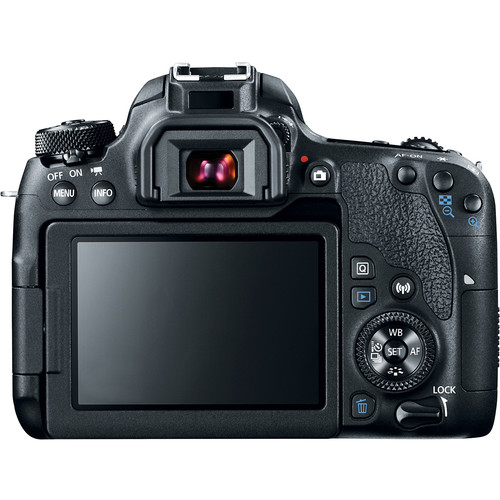

| Display Type | Articulating Touchscreen LCD |
| Type | Optical (Pentamirror) |
| Eye Point | 19 mm |
| Coverage | 95% |
| Magnification | Approx. 0.82x |
| Diopter Adjustment | -3 to +1 |
Focus
| Focus Type | Auto and Manual Focus |
| Focus Mode | Continuous-Servo AF, Manual Focus, Single-Servo AF |
| Autofocus Points | Phase Detection: 45 (45 Cross-Type) |
| Autofocus Sensitivity | -3 to +18 EV |
Flash
| Built-In Flash/Light | Yes, Flash Only |
| Guide Number | 39.37′ / 12 m at ISO 100 |
| Maximum Sync Speed | 1/200 Second |
| Flash Compensation | -2 to +2 EV (1/3, 1/2 EV Steps) |
| Dedicated Flash System | eTTL |
| External Flash Connection | Shoe Mount |
| Battery | 1x LP-E17 Rechargeable, 7.2 VDC, 1040 mAh |
Kit Lens
| Focal Length | 18 to 55mm (35mm Equivalent: 28.8 to 88mm) |
| Maximum Aperture | f/4 to 5.6 |
| Minimum Aperture | f/22 to 32 |
| Angle of View | 74° 20′ to 27° 50′ |
| Maximum Magnification | 0.36x |
| Optical Design | 12 Elements in 10 Groups |
| Diaphragm Blades | 7, Rounded |
| Focus Type | Autofocus |
| Image Stabilization | Yes |
| Filter Size | 58 mm (Front) |
| Dimensions (ø x L) | 2.6 x 2.4″ / 66.04 x 60.96 mm |
| Weight | 7.58 oz / 215 g |
Packaging Info
| Package Weight | 3.36 lb |
| Box Dimensions (LxWxH) | 8.8 x 6.75 x 5.8″ |
